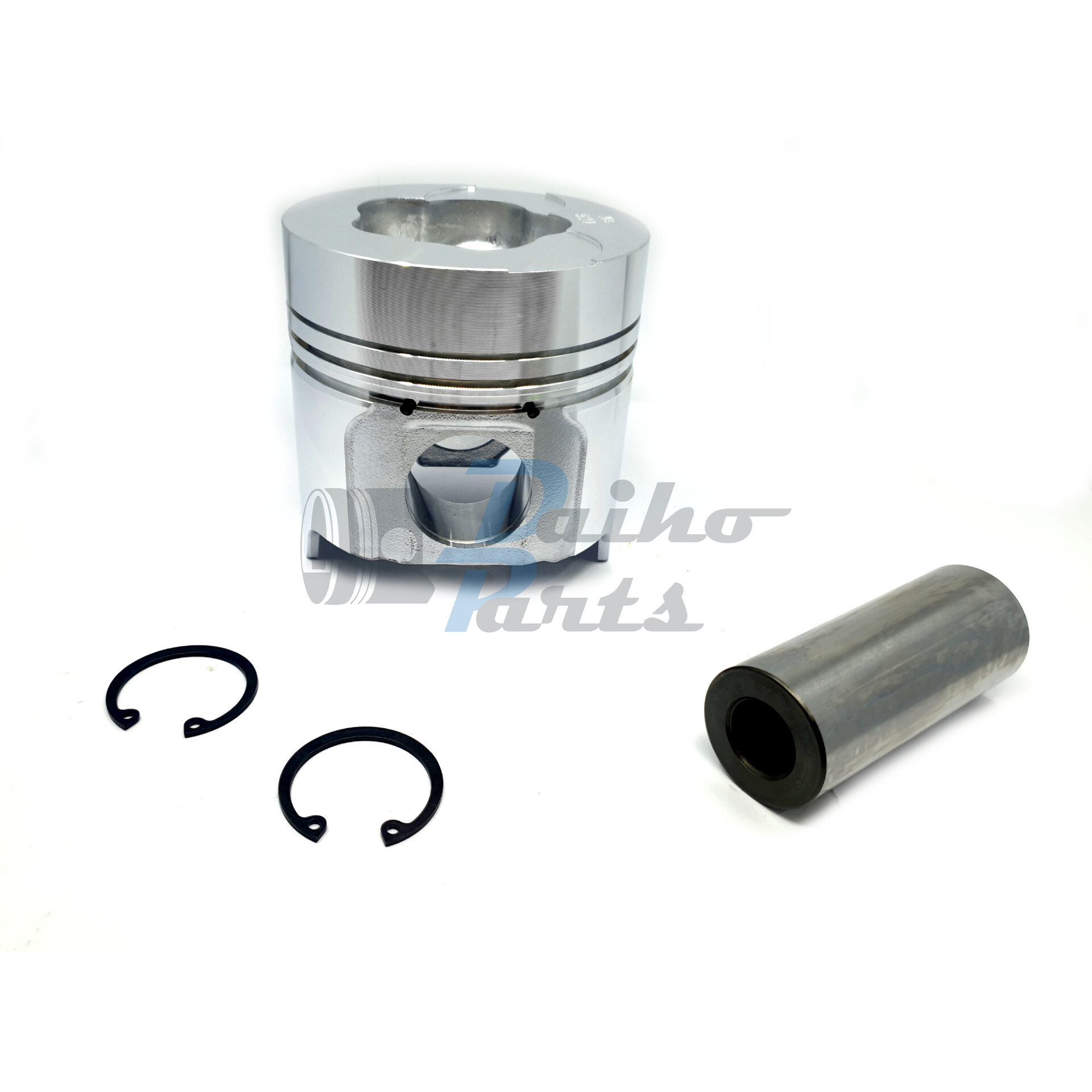

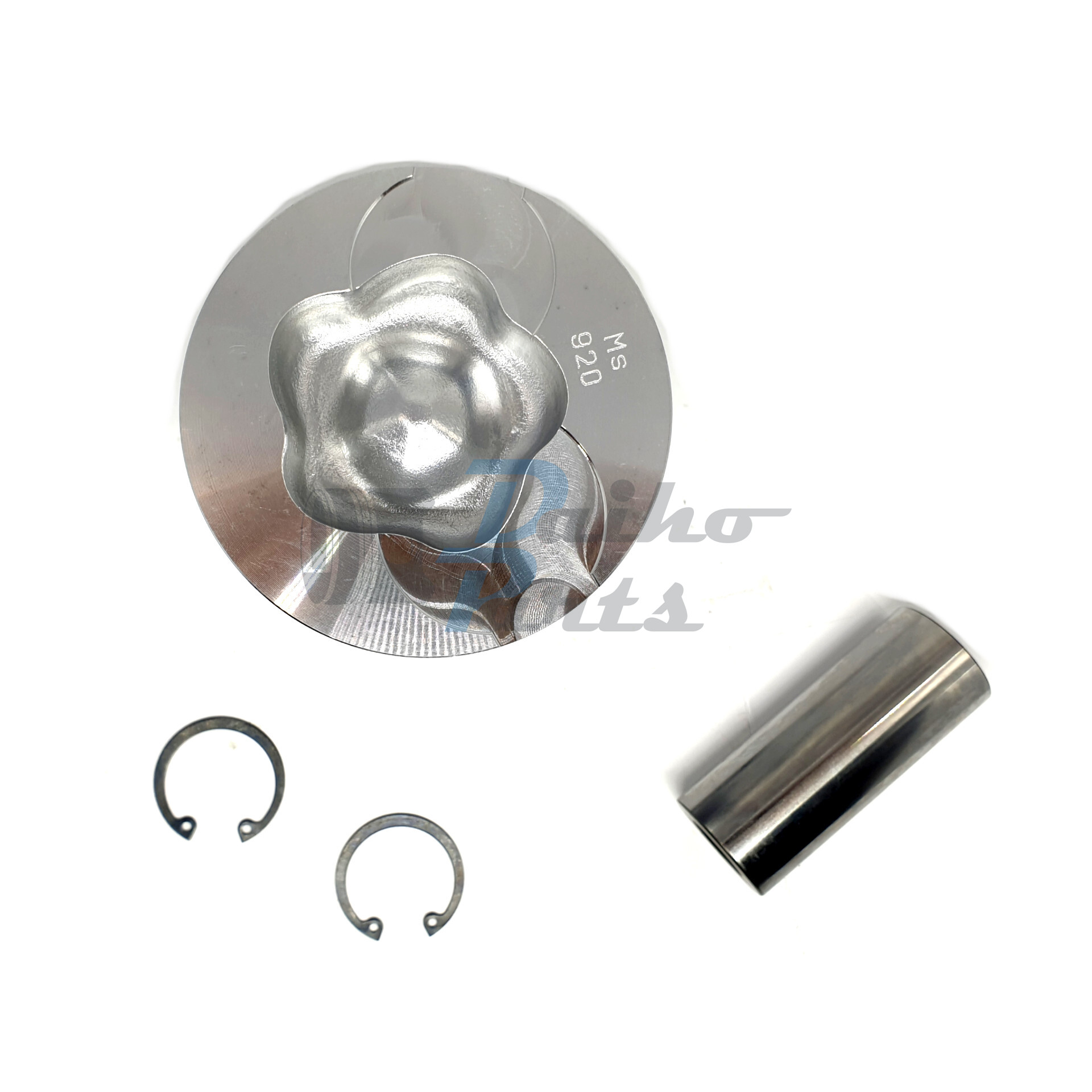

Piston with pin for Yanmar 3TN100 STD
Part no.075671EngineYanmar 3TN100
€ 113,85 excl. VAT · € 140,04 incl. VAT (EU)
No VAT for delivery outside the EU or for EU companies with a valid VAT number (enter it at checkout).
In stock
FedEx delivery to Europe and the USA: € 25,08 per parcel incl. VAT
Specifications
| Overall height | 100,5 mm |
|---|---|
| Pin diameter | 34 mm |
| From pin to the bottom | 42.5 mm |
| Chamber width | 44.4 mm |
| Rings | 100 × 1,5 × 2 × 3 mm |
Piston with pin for Yanmar 3TN100
Fits
- Engine: Yanmar 3TN100
Not sure this part fits your engine? Send us the engine model and serial number: +48 889 683 903 or parts@daihoparts.com
